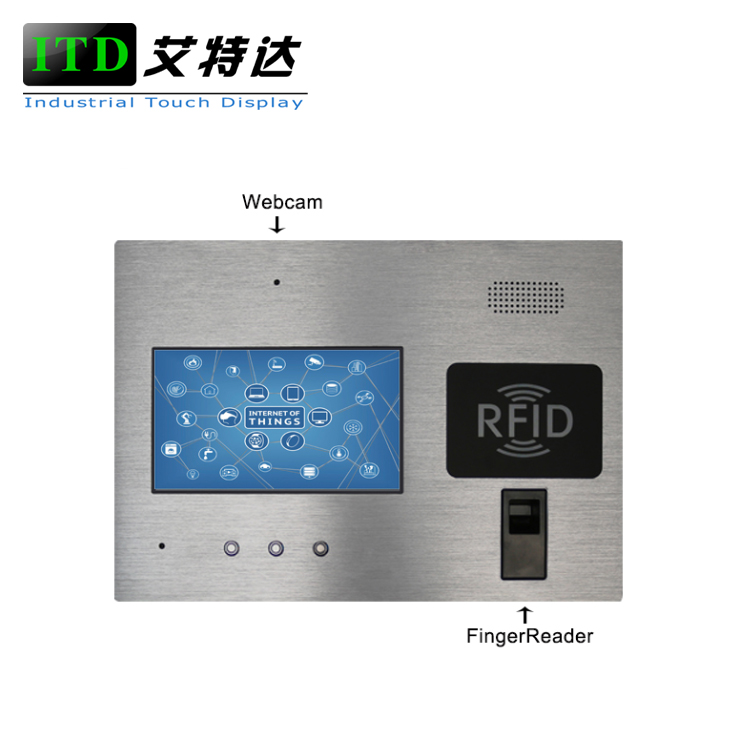

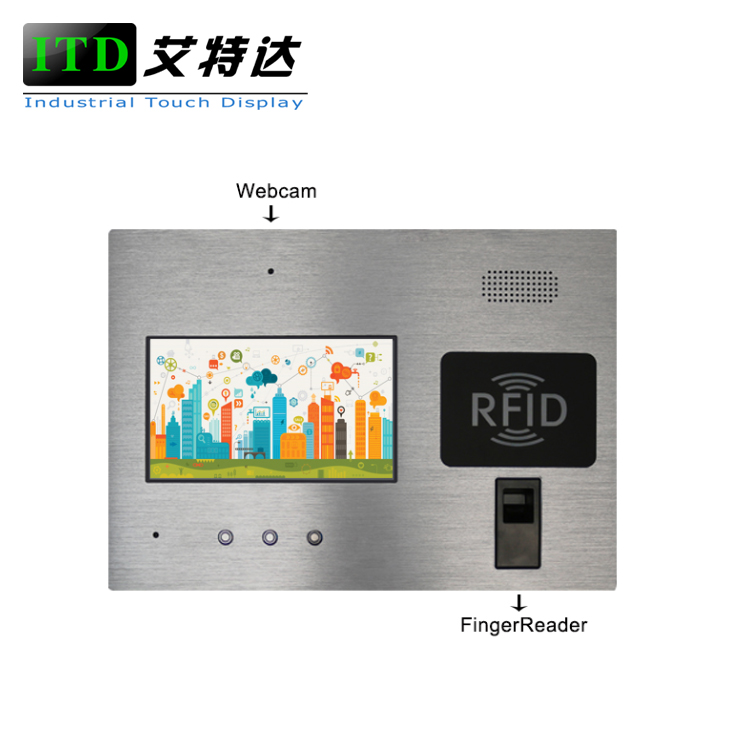

7 inch touch screen industrial panel mount pc with fingerprinter for access/door control
ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android media player, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.
PARAMETERS
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 7”/16:9 |
| Active Area/ Pixel Pitch | 153.6(W) x 90(H)mm/0.150 × 0.150mm |
| Native Resolution/ Colors | 1024 x 600/ 262K/16.7M |
| Brightness/ Contrast | 400cd/㎡/800:1 |
| Response Time | 50ms |
| Viewing Angle(Typical) | 85/85/85/85 |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz GPU: Mali-T764 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0; Bluetooth: Optional Video Decoder: 4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); |
| Operating Temperature | -10~60℃(-20~70℃ Optional) |
| Storage Temperature | -20~70℃ |
| Relative Humidity | 10%~90% (Non Condensing) |
| Order Information | 7”Flat Bezel Android Panel PC with PCAP Touch/ITD07PPCT5KXE31 |
| 7”Flat Bezel Android Panel PC with Tempered Glass/ITD07PPCG1XE31 |
FEATURES
• Centralized server controls content distribution;
• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;
• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;
• Simple content scheduling and updating for each display;
• Restart and update digital signage players remotely;
• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;
• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;
• Transfer schedules and contents to one or more displays;
• Control, monitor and design screen layouts remotely by the admin software;
• Support Multi-zone terminal display and flexible screen layout;
• Local review of multi-zone display layout once the content is stored in the server PC;
• Manage daily power on/off time for any display or group of displays;
• Content plays automatically upon set up of schedule;
• Display live news, weather, traffic reports, emergency announcements and many other notices;
• Remotely report system utilization and memory usage;
• System automatically notifies administrator of any malfunction;
• Daily, monthly display content recording;
• Possible to integrate with the any existing management system.
