Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD07PPC**IPS*-IPS65PPC**IPS*

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 1920x1080

Brightness : 250 ,1000,1500 nits optional

Processor : Android,Intel J1900,i3,i5,i7

touch panel : capacitive/resistive/IR

Mounting method : panel mounted,VESA

OS : Android 7.0,Windows 7/8/10, Linux

Operating Temperature : -10~60℃

Contact Now

waterproof dustproof IP68 HMI stainless steel Aluminum alloy rugged panel PC industrial panel computer

The ITD Full IP67/68 panel PCs series is an Intel® Core™ i3/i5/i7 Processor based that meets all hygiene regulation standards in the food, beverage, chemical, pharmaceutical, consumer packaged goods, and biotechnology process manufacturing. This waterproof PCs series has a wide range of sizes option, with complete stainless steel chassis and anti-corrosive. This HMI system features fan-less design and IP65/NEMA 4X sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration while meeting required EMI/RFI resistance compliance.

Specifications of IP68 HMI:

Model ITD10PPCG1IPSI* ITD12PPCG1IPSI* ITD15PPCG1IPSI* ITD17PPCG1IPSI* ITD19PPCG1IPSI* ITD21PPCG1IPSI*
Size 10.4” (4:3) 12.1”(4:3) 15” (4:3) 17” (4:3) 19” (4:3) 21.5” (16:9)
Active Area 211.2(W) x 158.4(H) 246.0(H) x 184.5(V) 211.2(W) x 158.4(H) 337.92(H) x 270.33(V) 376.32(H) x 301.06(V) 476.64(H)x248.25(V)
Contrast Ratio 500:1 500:1 700:1 1000:1 1000:1 1000:1
Resolution 800x600 or 1024x768 800x600 or 1024x768 1024 x 768 1280 x 1024 1280 x 1024 1920 x 1080
Brightness 300nits 300nits 300nits 250nits 250nits 250nits
Viewing Angles 70/70/60/70 70/70/60/60 80/80/60/80 85/85/80/80 85/85/80/80 85/85/80/80
Backlight LED LED LED LED LED LED

SPECIFICATION

System CPU Intel® Core i3/i5/i7 Processor
BIOS UEFI
Chipset Intel® HD Graphics (By CPU); Shared Memory
Memory 2 x SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 1 x SATA, 1 x mSATA, Default to 64GB SSD
I/O Serial Ports 1 x COM (Optional)
USB Ports 2 x USB 2.0(Waterproof Connector and Cable)
Power Port 1 x 12V DC Jack (Waterproof Connector and Cable); DC9-36V input optional
LAN 1 x 10/100/1000Mbps Ethernet (Waterproof Connector and Cable)
WIFI Built-in, 802.11a/b/g/h (optional)
Touch Screen Type Projected Capacitive Touch Screen with 10 independent touch points
Response Time ≤5ms
Interface USB or COM, default to USB
Transparency ≥85%
Lifetime ≥50,000,000 times/click
OS Support Windows CE/XP/7/8/10, Linux, Mac, Android
General Power Input DC 12V, DC 9-36, AC100-240V input optional
Power Switch Included
Mounting Option

75 x 75/100 x 100mm VESA Mount

Panel Mounting optional
Operating Temperature -10~60℃(-20~70℃ Optional)
Storage Temperature -20~70℃
Order Information Stainless Steel Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPSI3
Stainless Steel Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPSI3
Stainless Steel Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPSI3
Stainless Steel Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPSI5
Stainless Steel Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPSI5
Stainless Steel Full IP65/IP66 Panel PC i5 with PCAP Touch: ITD**PPCT5IPSI5
Stainless Steel Full IP65/IP66 Panel PC i7 with Tempered Glass: ITD**PPCG1IPSI7
Stainless Steel Full IP65/IP66 Panel PC i7 with Resistive Touch: ITD**PPCT1IPSI7
Stainless Steel Full IP65/IP66 Panel PC i7 with PCAP Touch: ITD**PPCT5IPSI7
Aluminum Alloy Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPAI3
Aluminum Alloy Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPAI3
Aluminum Alloy Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPAI3
Aluminum Alloy Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPAI5
Aluminum Alloy Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPAI5
Aluminum Alloy Full IP65/IP66 Panel PC i5 with Tempered Glass: ITD**PPCG1IPAI3
Steel Full IP65/IP66 Panel PC i3 with Tempered Glass: ITD**PPCG1IPXI3
Steel Full IP65/IP66 Panel PC i3 with Resistive Touch: ITD**PPCT1IPXI3
Steel Full IP65/IP66 Panel PC i3 with PCAP Touch: ITD**PPCT5IPXI3
Steel Full IP65/IP66 Panel PC i5 with Resistive Touch: ITD**PPCT1IPXI5
Steel Full IP65/IP66 Panel PC i5 with PCAP Touch: ITD**PPCT5IPXI5

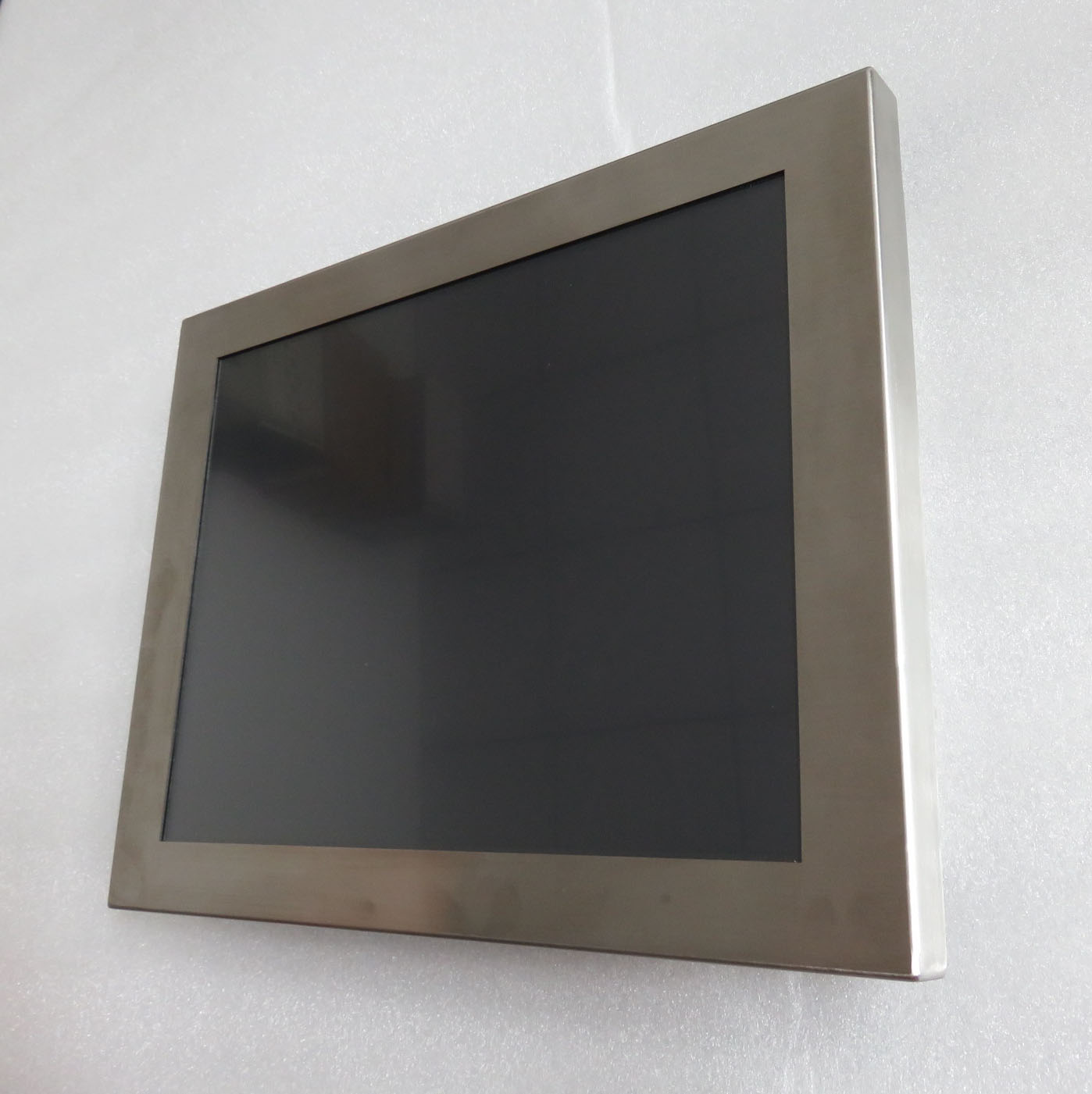

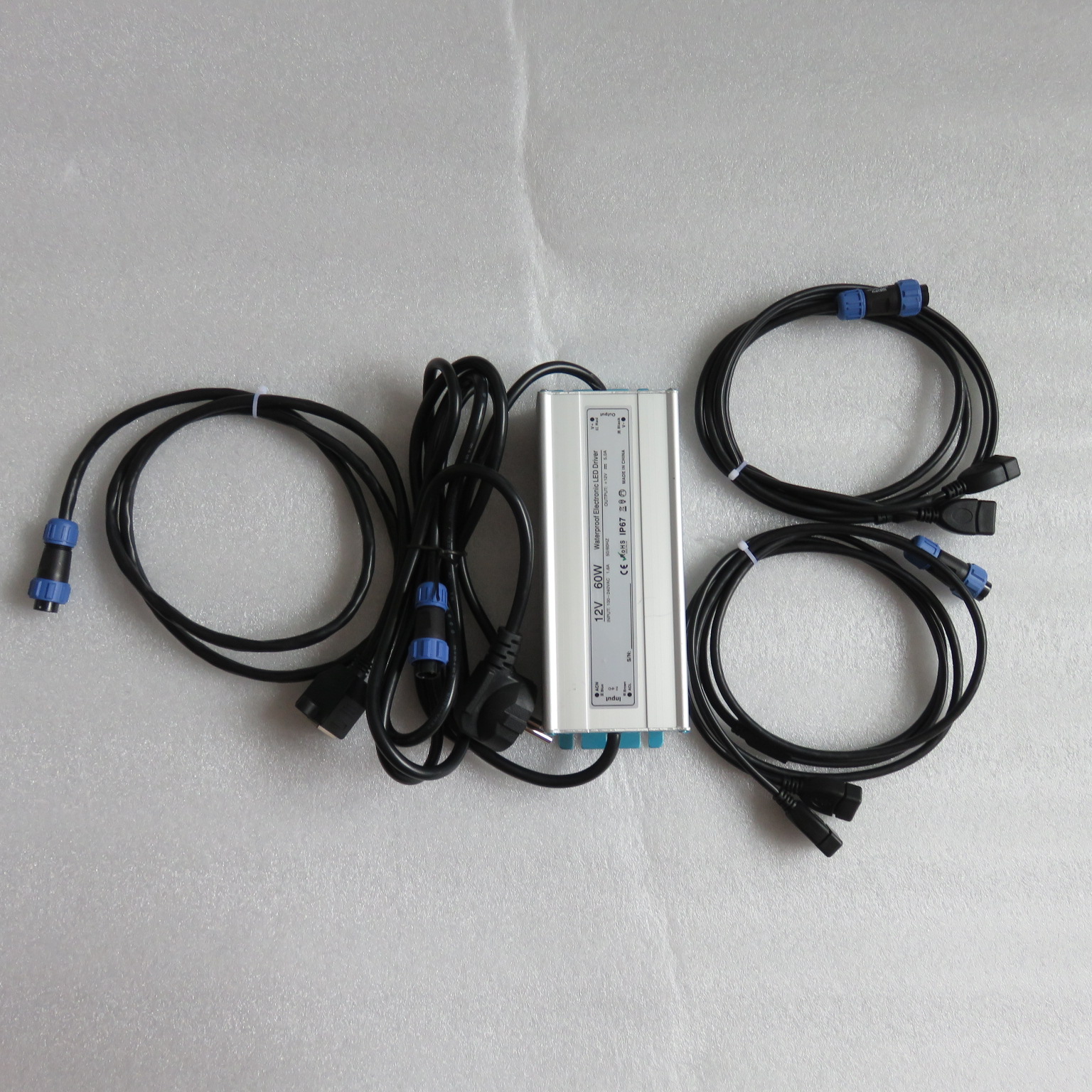

Product Image of wateproof dustproof panel PC

Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68

Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68

Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68

Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68

Aluminum Alloy Rugged Panel PC Industrial Panel Computer Waterproof Dustproof IP68
