Linux Intel Z8350 AIO Touch Panel PC LCD Computer DC 12V 220W

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITDxxPPCTxLxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : SVGA,XGA, FHD, UHD

Brightness : 400nits

Processor : Intel J1900, Intel i3/i5/i7

touch panel : pcap,IR, resistive, SAW

Mounting method : VESA

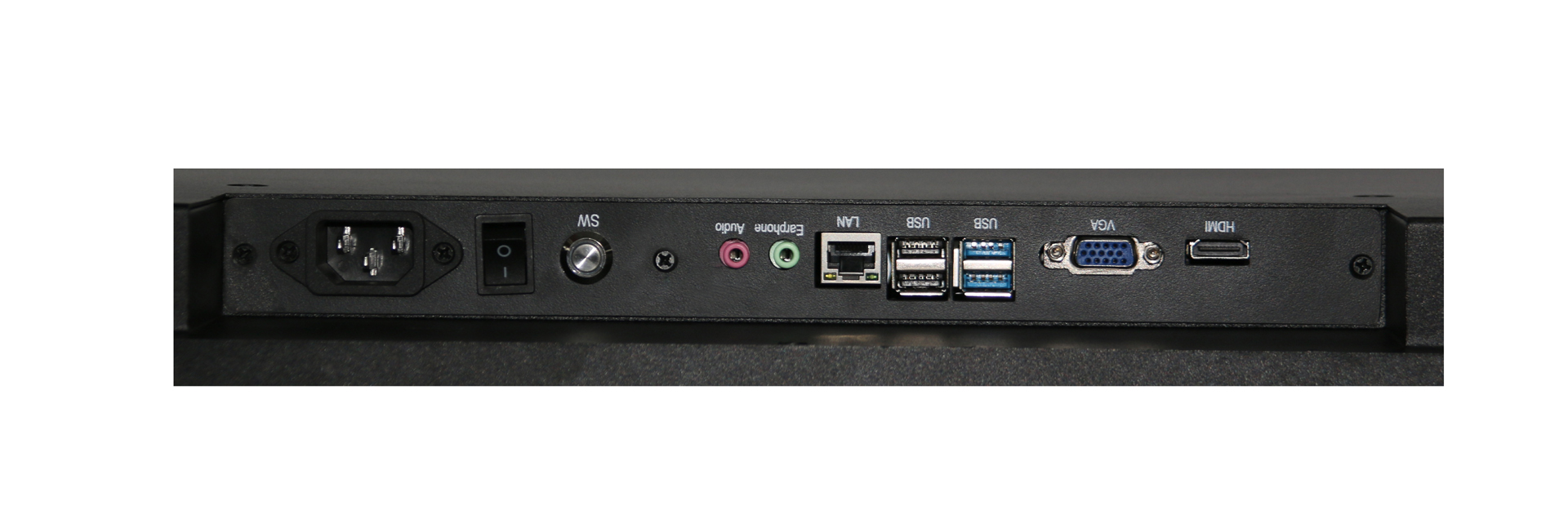

I/O : USB, COM, HDMI, Audio, LAN

Operating Temperature : -10~60℃

Humidity : 10%~90% non condensing

Material : Steel chassis

Warranty : 2 years

MTBF : 50000hours

Contact Now

linux panel pc Intel Z8350 AIO touch panel LCD computer DC 12V

ITD Low cost panel PC series with rugged steel chassis, provides OEMs with vast selection of technologies and solutions simplifying PLC, HMI and SCADA applications. These PCs feature Intel® Celeron™ Quad Core Processor J1900 2.0 GHz, in industrial-grade LCD flat panels with optional touch technology and NEMA 4 IP65 front bezel optional designed for HMI display and visualization solutions.

Features

▪ Flexible, reliable, and ruggedized for open platform HMI/SCADA

▪ Energy-efficient and fan-less HMI Systems

▪ Low cost solution with high cost-efficient

▪ All steel construction designed for harsh and industrial environments

▪ Flexible, easy configuration and integration

▪ CE, FCC, RoHS Compliance

Applications

  • Automation
  • Transportation&Vehicle
  • Digital Signage
  • Medical
  • IoT&AI
  • HMI
  • Banking
  • Kiosks
Model ITD10PPCN1LJ ITD12PPCN1LJ ITD15PPCN1LJ ITD156PPCN1LJ ITD17PPCN1LJ
Size 10.4” (4:3) 12.1” (4:3) 15” (4:3) 15.6” (16:9) 17” (4:3)
Active Area 211.2(W) x 158.4(H) 246.0(H) x 184.5(V) 304.128(H)x 228.096(V) 246.0(H) x 184.5(V) 337.920(H) x 270.336(V)
Contrast 500:1 500:1 700:1 700:1 1000:1
Resolution 800 x 600 or 1024 x 768 800 x 600 or 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024
Brightness 350nits 350nits 250nits 300nits 250nits
Viewing Angles 70/70/60/70 70/70/60/70 80/80/60/70 89/89/89/89 85/85/80/80
Backlight LED LED LED LED LED
Model ITD173PPCN1LJ ITD18PPCN1LJ ITD19PPCN1LJ ITD21PPCN1LJ ITD24PPCN1LJ
Size 17.3” (16:9) 18.5” (16:9) 19” (4:3) 21.5” (16:9) 24” (16:9)
Active Area 381.888(H) x 214.812(V) 409.8(H) x 230.4(V) 376.32(H) x 301.06(V) 476.64(H) x 248.25(V) 531.36(H) x 298.89(V)
Contrast 400:1 1000:1 1000:1 1000:1 1000:1
Resolution 1920 x 1080 1366 x 768 1280 x 1024 1920 x 1080 1920 x 1080
Brightness 300nits 250nits 250nits 250nits 300nits
Viewing Angles 70/70/60/60 85/85/80/80 85/85/80/80 85/85/80/80 89/89/89/89
Backlight LED LED LED LED LED
Model ITD27PPCN1LJ ITD32PPCN1LJ ITD42PPCN1LJ ITD55PPCN1LJ ITD65PPCN1LJ
Size 27” (16:9) 32” (16:9) 42”/43” (16:9) 55” (16:9) 65” (16:9)
Active Area 597.6(H)x 336.15(V) 698.4(H) x 392.85(V) 930.24(H) x 523.26(V) 1213.6(H) x 684.4(V) 1428.48(W) × 803.52(H)
Contrast 1000:1 1000:1 1200:1 3000:1 4000:1
Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Brightness 300nits 350nits 400nits 400nits 400nits
Viewing Angles 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
SPECIFICATION
System CPU Intel® Celeron J1900 2.0GHz Processor
BIOS AMI
Chipset Intel Bay Trail SoC
Memory Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB
Graphic Chipset Intel HD Graphics (By CPU)
Storage 1 x SATA, 1 x mSATA, Default to 64GB SSD
LAN 1 x 10/100/1000Mbps Ethernet; Dual LAN optional
Input/Output Serial Ports 1 x COM
USB Ports 4 x USB
VGA Port 1 x VGA Output
HDMI Port 1x HDMI Output
Audio Card Line-In/Line-Out/Speaker MIC IN
Power Input Voltage External Power Supply DC 12V for 10.1”~24”; Internal Power Supply AC100~240V for 27”~65”
Operation/Power Saving 30-220W
Environment Considerations Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90% (Non-Condensing)
OS Support Windows 7/ Windows XP/ Windows 8/ Windows 10/Linux
Mounting Method VESA, Side mounting brackets(Optional)
Order Information Chassis Panel PC with Resistive Touch/ITD**PPCT1LJ
Chassis Panel PC with IR Touch/ITD**PPCT2LJ
Chassis Panel PC with PCAP Touch/ITD**PPCT5LJ
Chassis Panel PC with Tempered Glass/ITD**PPCG1LJ
Chassis Panel PC with touch foil/ITD**PPCT7LJ
Chassis Panel PC with SAW Touch/ITD**PPCT3LJ

Linux Intel Z8350 AIO Touch Panel PC LCD Computer DC 12V 220WLinux Intel Z8350 AIO Touch Panel PC LCD Computer DC 12V 220W
