500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD23SDN1E1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Size : 23.1"

Active Area : 585.6(H) x 48.19(V) mm

Resolution : 1920 x 158

Viewing Angles : 89/89/89/89

Brightness : 500 nits

Convenient Features : Plug & Play

Stretched LCD Monitor : 1X VGA input,1x DVI input

Stretched LCD Single Media Player : 1 x SD Card Slot,1 x HDMI input

Stretched LCD Android Media Player : 1 x WIFI IEEE802.11B/g/n,2 x USB Ports

Contact Now

23.1"stretched bar type lcd shelf edge digital signage

ITD’s line of ultra wide helf-level digital media LCD displays provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content. ITD has a range of shelf edge screens specifically developed for the retail shelf to help customer to create different brand.

OPTIONAL

•ARM based PC built-in

•Single media player built-in

•Custom resized cut panel

•Flexible structure design like open frame, full IP65, custom design

LCD Panel
Cell Type/Glass Surface TFT
Size 23.1”
Active Area 585.6(H) x 48.19(V)
Pixel Pitch 0.10167x0.305mm
Native Resolution 1920 x 158
Colors 1.07G (8-bit+FRC)
Brightness 500nits
Contrast 3000:1
Response Time 9.5ms
Field Frequency 60Hz
Viewing Angle(Typical) 89/89/89/89
Light Source LED backlight with 50000hours’lifetime
Configuration Options
Stretched LCD Monitor Stretched LCD Single Media Player Stretched LCD Android Media Player
1 x VGA input 1 x SD Card Slot 1 x WIFI IEEE802.11B/g/n
1 x DVI input 1 x HDMI input 2 x USB Ports
1 x HDMI input 1 x USB Port 1 x SD Card Slot (Optional)

Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV

MKV, MP4, TS, M2T, VOB

 Video Formats Supported: RMVB,FLV, MPEG1/2/4, AVI, DIVX, XDIV, WMV9, H.264, VC-1, MOV, MKV, MP4, TS, M2T, VOB
Photos Format Supported: BMP/PNG/GIF/JPEG Photos Format Supported: BMP/PNG/GIF/JPEG

Audio Formats Supported: MP3, WMA

WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC

 Audio Formats Supported: MP3, WMA, WAV, EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC

Basic Parameters

Convenient Features Plug & Play
Power Source External Power Supply with Universal/Auto-Sensing, DC 12V
Power Consumption Operation/Power Saving 20W
Operating Temperature 0℃-50℃
Storage Temperature -10℃-60℃
Relatively Operating Humidity 10% - 90% (non condensing)
Relatively Storage Humidity 10% - 90%
Order Information 23.1” Stretched LCD Monitor/ITD23SDN101
23.1” Stretched LCD Single Media Player/ITD23SDN1A1
23.1” Stretched LCD Android Player/ITD23SDN1E1
23.1” Stretched LCD Monitor with Tempered Glass/ITD23SDG101
23.1” Stretched LCD Single Media Player with Tempered Glass /ITD23SDG1A1
23.1” Stretched LCD Android Player with Tempered Glass /ITD23SDG1E1

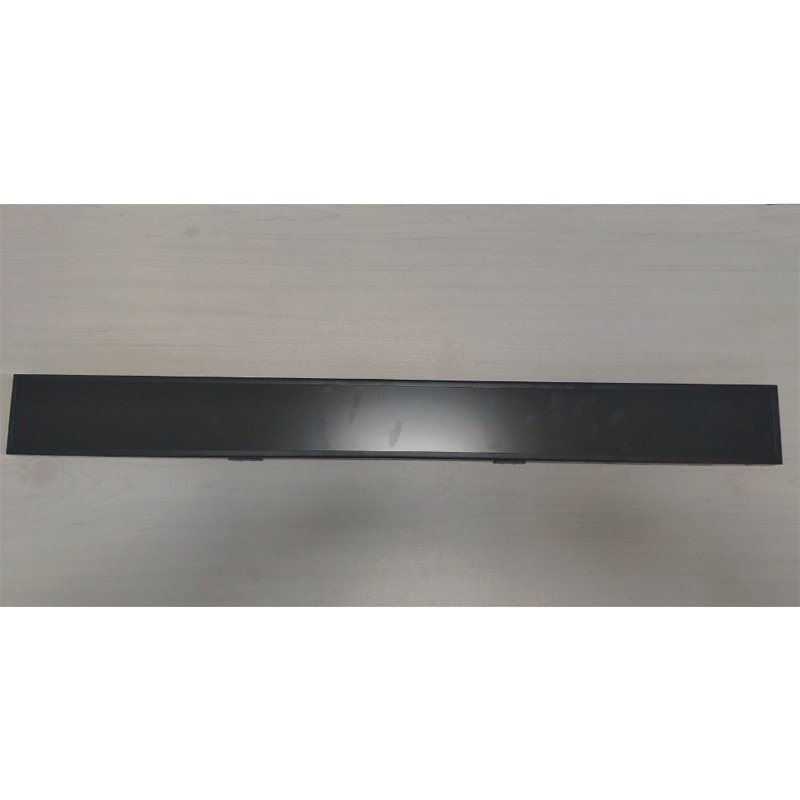

Product Display

500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"

500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"

500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"

APPLICATION

500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"

OUR FACTORY
500 Nits Brightness Stretched Bar LCD Monitor Shelf Edge Digital Signage 23.1"
