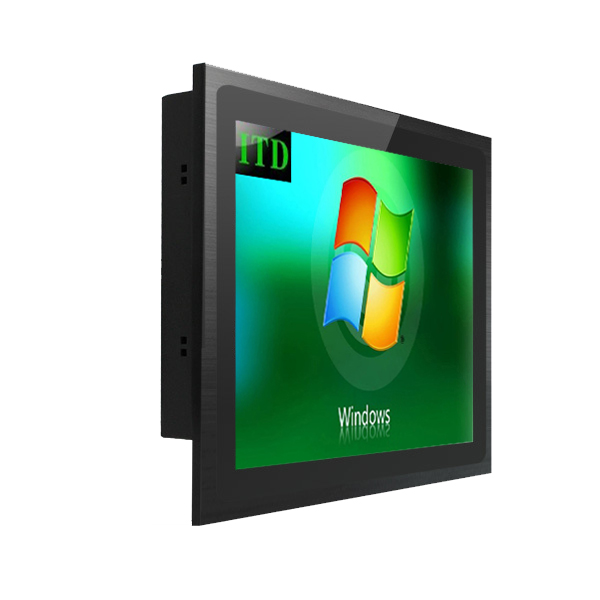

Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted

Brand Name : ITD/OEM

Model Number : ITD21PPCT5X**

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Delivery Time : 15-20 work days

Packaging Details : Foam,gift box,master carton,wooden case,pallet

CPU : Intel Core i7

Size : 15-inch

Native Resolution : 1920x1080

Brightness : 300cd/m2

Viewing Angle : 89/89/89/89

Input Voltage : DC9-36V，DC12V

Battery : Lithium-ion

Camera : 2MP

Color : Black

Display : LED

Graphics : Intel HD Graphics

OS : Windows 10

Ports : USB 3.0, HDMI, Ethernet

RAM : 8GB

Resolution : 1920x1080

Storage : 256GB SSD

Touchscreen : Capacitive

Weight : 2.2kg

Wireless : Wi-Fi, Bluetooth

Contact Now

Windows-Based Touch Panel PC with 10-Touch Capabilities industrial PC panel mounted touch screen

The ITD industrial multi-touch screen panel mounted panel PC is fully-integrated‚ multi capacitive touch screen that combines high-performance Intel® Celeron™ Quad Core Processor J1900 2.0 GHz with Projected Capacitive Touch (PCT or PCAP) Technology in a sleek industrial-grade IP65/ NEMA 4/4x Ingress rating TFT-LCD flat panel with flat front surface design. The ITD Windows-based control panel is Commercial Off-the-Shelf (COTS) unit and allows easy access to ten-touch capabilities built into Windows 7/8 and other popular programming languages. The ITD multi-touch panel mounted panel PC is designed for industrial, process manufacturing, discrete manufacturing, industrial automation, building automation, process control, access control, room reservation, room scheduling, medical healthcare, kiosks, machinery manufacturing, and custom machine to machine interface applications.

Specs:

PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio21.5”/16:9
Active Area/ Pixel Pitch476.64(H) x268.11(V)mm/0.24825× 0.24825mm
Native Resolution/ Colors1920 x 1080/16.7M
Brightness/ Contrast1000cd/㎡(1500cd/㎡optional)/1000:1
Response Time/ Viewing Angle(Typical)5ms/89/89/89/89
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional

1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
I/O1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving40~65W
Environment ConsiderationsOperating Temperature-10~60℃
Storage Temperature-20~70℃
Relative Humidity10%~90%
Order Information21.5” Flat Bezel Panel PC 1000nits with PCAP Touch RK32880/ITD21PPCT5HBXE2
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch RK3288/ITD21PPCT1HBXE2
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass RK3288/ITD21PPCG1HBXE2
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch J1900/ITD21PPCT5HBXJ2
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch J1900/ITD21PPCT1HBXJ2
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass J1900/ITD21PPCG1HBXJ2
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i3/ITD21PPCT5HBXI3
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i3/ITD21PPCT1HBXI3
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i3/ITD21PPCG1HBXI3
21.5” Flat Bezel Panel PC 1000nits with PCAP Touch i5/ITD21PPCT5HBXI5
21.5” Flat Bezel Panel PC 1000nits with Resistive Touch i5/ITD21PPCT1HBXI5
21.5” Flat Bezel Panel PC 1000nits with Tempered Glass i5/ITD21PPCG1HBXI5


Image:


Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted



Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted

Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted
Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted

Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted
Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted


FEATURES

▪ Freescale ARM Cortex-A9 i.MX 6DualLite processor with Android 5.1 OS
▪ LTE/HSPA+, Wi-Fi, Bluetooth, and GPS connectivity
▪ Energy-efficient and fan-less HMI Systems
▪ Robust design with aluminum bezel NEMA 4/ IP65 front panel
▪ CAN bus interface with raw CAN, J1939, and OBD-II/ISO 15765 support


Windows Based Touch Panel PC With 10 Touch Capabilities Industrial Mounted
