Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC

Brand Name : ITD/OEM

Model Number : ITD21PPCT5X**

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 20 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Native resolution : 1920*1080

Brightness : 250nits,1000 nits

Viewing Angle : 89/89/89/89

Input Signal : HDMI,VGA,DVI

Power Input : DC 12V (Waterproof Connector) DC24V, DC9-36V, AC100-240V input optional

Storage Temperature : -20~60℃

Operating Temperature : 0~50℃

Contact Now

Aluminum alloy pure flat bezel IP65 front resistive pcap touch industrial panel PC panel mounted PC

ITD 21.5” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance Intel® Core™ Dual/Quad Core Processor i3/i5/i7, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.

Panel Cell Type/Glass Surface TFT
Size 21.5”
Aspect Ratio 16:9
Active Area 476.64(H) x 248.25(V)mm
Pixel Pitch 0.24825 × 0.24825mm
Native Resolution 1920 x 1080
Colors 16.7M
Brightness 250nits
Contrast 1000:1
Response Time 5ms
Viewing Angle(Typical) 178(H)/178(V)
Light Source LED Backlight with 50000Hours’Lifetime
System CPU Intel® Core i3/i5/i7 Processor
BIOS AMI
Chipset Intel SoC Chipset
Memory 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Graphic Chipset Intel HD Graphics (By CPU)
Storage 1 x SATA, 1 x mSATA, Default to 64GB SSD
LAN 1 x 10/100/1000Mbps Ethernet
Input/Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA Output
HDMI Port 1x HDMI Output
Audio Card

with Realtek ALC662

Line-Out/MIC IN
Power Input Voltage DC 12V
Operation/Power Saving 38W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%(Non Condensing)
OS Support Windows 7/ Windows XP/ Windows 8/ Linux/Windows 10
Mounting Method VESA, side mounting brackets optional
Accessories Power cable, Motherboard CD driver, Screws
Order Information 21” Zero-Bezel PCAP Touch Panel PC with Intel i3/ITD21PPCT5KI3
21” Zero-Bezel PCAP Touch Panel PC with Intel i5/ITD21PPCT5KI5
21” Zero-Bezel PCAP Touch Panel PC with Intel i7/ITD21PPCT5KI7
21” Zero-Bezel Panel PC with Tempered Glass/ITD21PPCG1KI*


BENEFITES

  • Exceptional quality and highly engineered industrial heavy duty monitors
  • Optional touchscreens like resistive and PCAP
  • Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
  • Solid steel and stainless steel or aluminum alloy enclosures
  • IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
  • Accuracy in high-use applications
  • Long lasting product cycle for continuity thru all phases of project

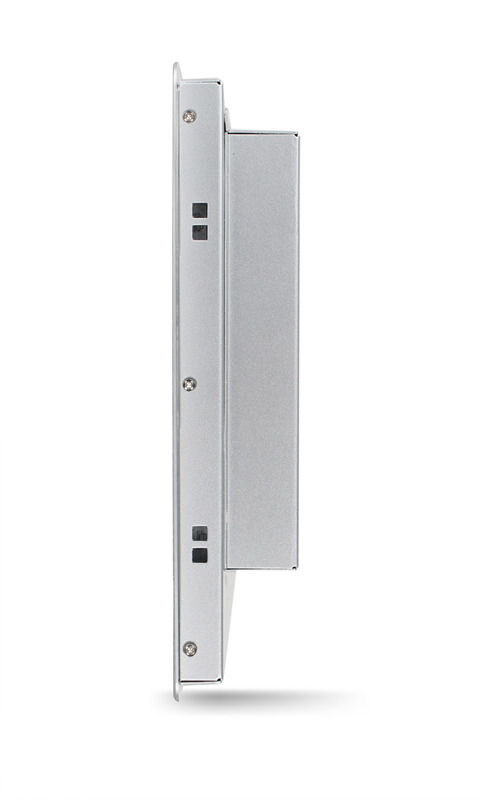

Product display


Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PCAluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC

Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC

Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC

Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC



Applications:

Aluminum Alloy Pure Flat Bezel IP65 Front Resistive Pcap Touch Industrial PC Panel Mounted PC
